(*This post may contain affiliate links, which means I may receive a small commission if you choose to purchase through the links I provide (at no extra cost to you). Thank you for supporting the work I put into this site!)

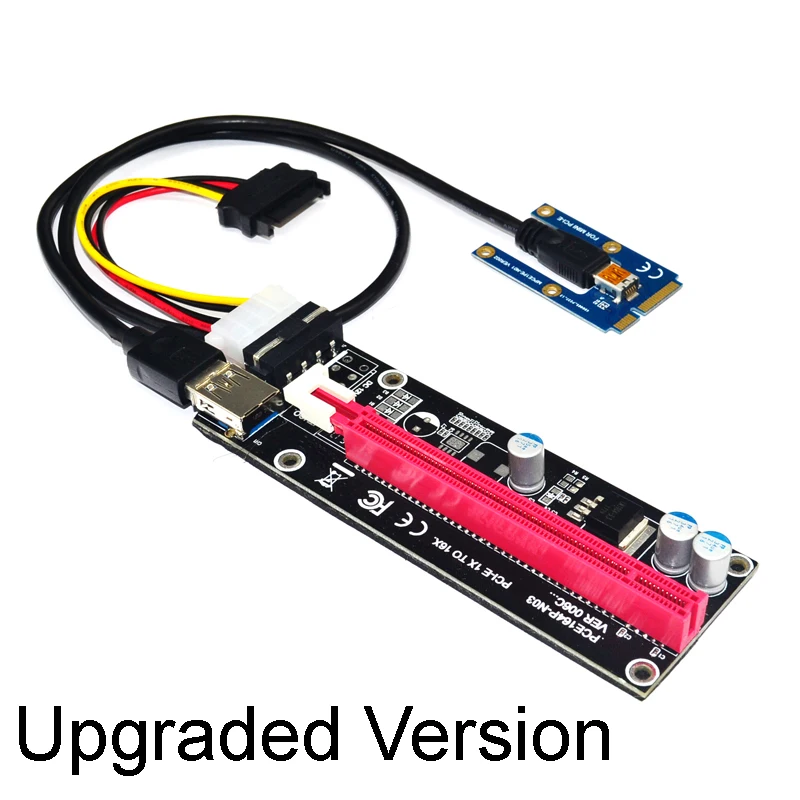

GF FX 5500 FX5500 256 MB PCI Desktop Video Graphics Card Vga Nvidia Chipset. Limited time offer, ends 01/01. Max Resolution: 2048 x 1536 DVI: 1 x DVI DirectX: DirectX 9 Chipset Manufacturer: NVIDIA Model #: ETB2CVCN007 Item #: 9SIA4RE9760961 Return Policy: View Return Policy $47.99 –. What graphic card slot is better Hi, I have MSI Z68A-GD65 (B3) board and I am installing a graphic card. It has 2 slots, first one is PCIE2 and another is PCIE5, which has label “True PCI-E 2.0 SLI & CrossFireX” Should I use this shot or the first one? PCIe Expansion Card For Mining. If in the event you find that your motherboard is limited on PCIe slots for your cards there are some options you can pursue. One of them is just going out and buying a different motherboard that’s designed for handling this many cards as its not best practice anymore to go the route I’m about to mention.

Graphics card sagging can lead to serious consequences in the long run if it is not dealt in time. This problem generally occurs in longer mid to high-end graphics cards that have a bulky and heavy heatsink. In GPU sagging, the graphics card at one side bends down or hangs due to its weight, due to lack of support. The sagging of GPU can put stress on your motherboard and may cause some damage to it in the long run, if the sagging persists. Some high-end motherboards do come with metal reinforced PCI-E x16 slot, but not everybody buys the top model or top-end motherboard, and in these motherboards too, you can notice some amount of graphics card sag because of the weight. Also, high-end graphics cards with metal backplate do encounter sag because of their weight and length. So, in these cases, the best way to prevent graphics card sagging is to use a GPU Support Bracket, Graphics Card Holder or Graphics Card Sag Holder. These graphics card sag holders provide support to the graphics card at the sagging end and prevent it from drooping.

There are generally two types of GPU support brace or graphics card sag holders: vertical and horizontal. Both of them have their own advantages and disadvantages and are suited for different conditions. Horizontal Graphics Card Holder or GPU Support Bracket is mostly an ‘L’ shaped metal piece that attaches to the side of the case bracket, along with the graphics card using screws. It consists of adjustable rubber mounts or pads on the arm that makes contact with the bottom end or graphics card shroud to give the card proper support and prevents it from sagging. For the horizontal graphics card support bracket to work, the graphics card width should be slightly greater than the computer case bracket. This means that it cannot work with graphics card having a width equal or less than the bracket, and also with low profile graphics cards. Horizontal graphics card sag holder is also called GPU Support Bracket, GPU Support Brace, GPU Brace Support Bracket or Horizontal GPU Sag Holster.

On the other hand, Vertical Graphics Card Holder is basically a stand with a shaft, on which two or more adjustable sliders or holders are present, which can be locked at the desired position to provide support to the graphics card and prevents it from sagging. Vertical GPU holder can support multiple graphics cards without any issues, whereas a horizontal one can support only one graphics card at a time and can cause an issue with the adjacent graphics card below it if you are using more than one graphics card in SLI or CrossFire setup. However, it cannot be used with computer cases that do not have spare space for it to stand on. So, if you have a smaller PC case with hard drive cages very close to the motherboard, then you will have a hard time fitting it to give your graphics card support. In general, a vertical graphics card sag holder provides better and stable support to the graphics card and is more flexible compared to the horizontal one. Below you can see horizontal and vertical graphics card brace support holders.

For those of you who prefer to build their own PCs, sometimes you begin to wonder what you can do with the slots and ports you don’t always take advantage of. For example, we commonly run across questions involving the PCIe 1x slot on a motherboard and what it can be used for. Those longer 8x and 16x slots are mostly dedicated to your video card (or cards), but not everyone knows what they.

Vertical GPU support brace can be used with all types of graphics cards, including the passive graphics cards with huge heatsinks, but the horizontal one does have some limitations regarding the height of the graphics card. The quality of the GPU support brace also matters because a cheap and flimsy one will be as good as useless and you will finally end wasting your money. So, to help you out on this, here I am going to list down some of the best GPU support brackets /holders, both horizontal and vertical that can be used to fix your graphics card sag.

Horizontal Graphics Card Holders

Here are some of the best horizontal graphics card holders or GPU support brackets to prevent graphics card sagging.

upHere Graphics Card GPU Brace Support

A simple GPU Brace Support Holder from upHere to prevent the video card from drooping. It is made up of aluminum and comes with four screws and two rubber mounts that can slide on the horizontal arm for proper adjustment. This GPU support bracket is very simple to use and you just have to screw it to with the graphics card bracket. It has got three slotted screw holes for adjustment and aligning the graphics card with the PCIe x16 slot. It is 10.5 inches in length and can easily support high-end graphics cards up to 300mm (or more) in length comfortably. It should be noted that the graphics card width should be slightly more than its bracket for this holder to work. The rubber mounts or silicone pads prevent any scratches and can be adjusted horizontally for proper positioning so that they do not interfere with the graphics card fans.

This video card sag holder works with dual-slot graphics cards and can also support 2.5 slot and 2.75 slot graphics cards. It is compatible with a wide range of motherboards and cases, but it can support one graphics card at a time and is not suitable for dual GPU setup in SLI or Crossfire configuration. It does not restrict airflow and does not require any extra space inside your computer case. It keeps the graphics card align perfectly by keeping it intact at its place, and is very stable. Once mounted, you don’t have to worry about your graphics card sagging, and can move or carry your case from once place to another without worrying about anything. It comes in three colors: black, blue and red to match your gaming rig theme.

Note: You must use the included screws for installing it, because they are longer (1.5 inches approx.) than the standard screws for PCI / PCIe brackets.

Another Horizontal GPU holder

Here is another good GPU support bracket, just like the above one from upHere. It works the same way and also the design is almost the same. You can check it out too from the link given below.

upHere Addressable RGB GPU Brace Support

If you are looking for a fancy horizontal GPU Brace support with RGB lighting then this is the one to go for. It comes with Addressable RGB LEDs at the bottom with a white diffuser. The GPU brace support is stylish and the RGB lighting looks super cool when lit up, and you can also change the lighting effects using the compatible RGB software. As the RGB LEDs are addressable, which means you would require a 5V 3-pin ARGB header for them. You may also connect the 5V 3-pin ARGB connector to an RGB controller that includes the support for ARGB LED components.

This ARGB GPU Anti-Sag Bracket supports a majority of the motherboard RGB software that includes Asus Aura Sync, Gigabyte RGB Fusion, MSI Mystic Light Sync, ASRock RGB LED, BIOSTAR RGB, etc. There is a sliding rubber pad located on the top for providing support to the card at the proper point, and it does not scratch the surface of the graphics card at all. The RGB Graphics Card Brace Support comes with six screws, three thumb screws and three Philips screws for installation. If you already have RGB components installed in your PC i.e. RGB Fans, RGB RAM, etc., then this RGB GPU Brace Support Bracket would go very well with them.

Cooler Master ELV8 Universal Graphics Card Holder

[Addressable RGB, Length & Height Adjustment, Sleek Design]

If you are looking for a branded Graphics Card Holder that goes well with your fancy gaming PC then Cooler Master ELV8 is the one for you. This is a horizontal Graphics Card Holder that comes with ARGB LEDs and is compatible with Asus Aura Sync, MSI Mystic Light Sync, Gigabyte RGB Fusion, and ASRock Polychrome Sync RGB motherboard software. This GPU Brace support attaches to the expansion slot with the help of three screws. It allows both horizontal (length) and vertical (height) adjustment using a tool-free slider and hinge, so that your graphics card is positioned for best support.

The graphics card holder is sturdy, sleek and looks great in the case. The RGB LED strip runs along with the graphics card holder and looks very neat. It can support most of the graphics cards, including the bulky ones. It should be noted that you will need a 3-pin 5V ARGB header or compatible RGB controller to use the RGB LED lighting. A 3-pin ARGB adapter cable comes bundled with the package, along with three thumb screws.

Vertical Graphics Card Holders

Here are some of the best vertical video card sag holders to prevent GPU sagging.

upHere VC-1 Graphics Card Support Stand

A vertical graphics card holder from upHere that packs great quality and is very easy to use. This is basically a graphics card support stand with a solid metal bar with two support arms that slide up and down and can be adjusted to the desired height by tightening the tool-less screws on them. On their upper surface, they have rubber pads that prevent scratches on the graphics card and they also provide better grip. The whole graphics card holder is made of aluminum and the construction quality is very good. The base of the round stand comes with a magnet that holds the stand firmly in the case. The magnet is pretty strong but not strong enough to damage your hard drives (HDDs) if they are in close vicinity of the stand. The stand is quite stable, but if you move around your case then it can get displaced slightly, and you can position it again.

This vertical graphics card holder can support two graphics cards in a multi-GPU setup (SLI or CrossFire). These support arms hold the graphics cards pretty well and eliminate the graphics card sag completely. The stand should be placed on the flat surface that is magnetic. You can place it on the bottom of the case and also on the PSU shroud if you have a full-length shroud. The holder does not consume much space and it neither restricts the airflow in your case. The height of the stand is 10.6 inches and the diameter of the stand is 4cm only. Also, it does not interfere with your adjacent brackets and PCIe slots, and you can use other PCIe expansion cards on your motherboard without any issues.

Cooler Master Universal VGA Holder

If you are looking for a branded graphics card sag holder then Cooler Master Universal VGA Holder fits the bill perfectly. Just like the above mentioned UpHere graphics card holder, it also comes with two support arms and can support two graphics cards. However, the supporters here are made of ABS plastic and have a friction locking mechanism where you just have to push the clip inside to lock the support arms. This locking mechanism is relatively easy and quicker than compared to the tool-less screw ones in the upHere one. The bar and the stand are made of aluminum and is very stable. The stand is a tripod one and has strong magnets located on each of the legs.

This Cooler Master Universal Graphics Card Holder comes with two bars, and you can either use one or two at the same time, depending on the height of the graphics card from the base. This means if you have a smaller case then you are good with one bar only, but if the case is big then you can join the two bars together to extend its length so that it can reach the graphics card. It is only available in black color. Overall, a high-quality graphics card holder that works great and is very easy to install and use.

Deepcool GH-01 A-RGB Graphics Card Holder

[Addressable RGB Graphics Card Holder]

If you are in search of a fancy graphics card holder with RGB lighting then Deepcool GH-01 A-RGB Graphics Card Holder is to look for. It is a wider graphics card holder that comes with nine Addressable RGB LEDs and supports Asus Aura Sync, Gigabyte RGB Fusion, ASRock Polychrome Sync, and MSI Mystic Light Sync RGB software. It needs a 5V ARGB header on the motherboard or an ARGB controller and is not compatible with 12V RGB header and controllers. The GPU holder consists of two parts, one is the base and the other one is the frame. The frame has metal construction and houses the ARGB LEDs, while the base is made of plastic and provides support to the frame. The holder comes with two bases, one is standard while the other one is taller.

This GPU support holder has a modular design and it also allows you to hide the PCI-E power cables inside it that goes into the graphics card. It utilizes a unique saw-tooth adjustment mechanism and a dual-hole installation design for super easy installation. It must be noted that the base is non-magnetic, but you can use double-sided tape to fix it firmly on the bottom of the case. This graphics card support holder from Deepcool claims to support graphics cards up to 5Kg in weight, which is great and shows its high build quality and structural strength. It is compatible with most of the computer cases, with or without a power supply shield or shroud. A non-RGB variant of this graphics card holder is also available, which you can also check out from the link given below.

Cooler Master ARGB GPU Support Bracket

[Edge-Lit ARGB Tempered Glass, 100% Tool-less Design, Stunning Look]

The best-looking GPU Support Bracket in the market right now. It is a vertical GPU support bracket that comes with ARGB LEDs and Tempered Glass. The vertical bar is made up of Tempered Glass and CNC machining on the tempered glass creates rails for ARGB lighting to travel throughout the bracket. The edge-lit RBG lighting on the GPU support bracket looks breathtaking and if you already have RGB components in your PC then the Cooler Master ARGB GPU Support Bracket further enhances the looks of your PC. The Addressable RGB lighting can be synced with the motherboard’s RGB software given that your motherboard has an ARGB header which is required by the support bracket.

The other material used for the support bracket is ABS plastic which is quite sturdy and durable. The base has a strong magnet that keeps the support bracket firmly in its place. There are two support arms included for multiple orientations and you can either place it at the tail-end of the GPU, or the side of the GPU closest to the side panel depending on the clearance present in your PC case. The support clips are tightened using the clips only by hand and this makes it for a 100% screw-less and tool-less design. So, if you want a cool-looking GPU support brace without compromising on the quality and aesthetics of your PC case then it is the one.

Must Read:

Final Words

In the end, I would only like to say that if you are suffering from graphics card sagging problem and do not want to incur any damage to your motherboard or graphics card then these GPU support brace or Graphics Card sag holders are really a life saver in true sense. They are inexpensive and can save you from all the trouble that you can have from a sagging video card. You can choose any of the GPU brace support video card holders based on your PC case and requirements, and if you are unsure which one is right for you then you can ask your queries in the comment section below, by giving all the necessary details that include model of the graphics card and the PC case.

What kind of expansion slot should you use for your video card?

There's lots of slots

To add a video card to your computer, you have to pick an expansion slot. There have been many kinds of expansion slots over the years so most motherboards contain more than one kind of slot. They usually have a few of the older slots and a few of the newer ones. The slots differ greatly in speed so you need to pick the right kind of slot.

The motherboard shown above includes most of the slots that you'll run into these days. It's a little unusual in that you don't often see motherboards which have both PCI-Express slots and an AGP slot. The best slot to use for video cards is the PCI-Express x16 slot. The next best is the AGP slot. The next best is a PCI-Express x1 slot but video cards which fit that slot are very hard to find as of late 2006. The worst choice for a video card is a PCI slot. If you're building or buying a new computer then be sure to get one with a PCI-Express x16 slot. You shouldn't buy anything else. Some low-budget computers are sold with integrated video and have neither a PCI-Express x16 slot or an AGP slot. With that kind of computer you're stuck using a very slow PCI slot when upgrading your video system. You definitely want to avoid that situation. Many low-budget computers with integrated video include either a PCI-Express x16 slot or an AGP slot so be sure to get one of those. That way you'll have good choices available if you decide to upgrade your video system. If you only have a PCI slot then your upgrade choices are extremely limited, underpowered, and overpriced.

PCI-Express

PCI-Express is the newest kind of expansion slot used in PCs. It is technologically superior to the older slots in every way. PCI-Express can be referred to using various names: PCI-Express, PCIe, or PCI-E. They all mean exactly the same thing. There's another completely different and incompatible bus called PCI-X so be sure not to get them confused. Despite the similarity in names, there's no hardware compatibility of any kind between PCI and PCI-Express. You can't plug PCI cards into PCI-Express slots or vice versa. It was just the computer industry doing their level best to confuse people. (Just for the record, the USB 2.0, USB High Speed, USB Full Speed naming debacle is the current leader in 'the most confusing naming convention in existance' competition. The PCI-Express, PCI confusion is somewhat farther down the list.)

In PCI-Express x16, the 'x16' part is pronounced, 'times sixteen' or 'by sixteen'. The number following the 'x' is the number of PCI-Express lanes in the slot. The more lanes in the slot, the faster it can go. The motherboard picture above shows both a x16 slot and a x1 slot. Video cards are normally designed to fit in x16 slots since they are the fastest. You can also get video cards designed for x1 slots. Those are normally used only if you want more than one video card in the computer. Most motherboards have one PCI-Express x16 slot for a video card and one or more x1 slots for other things like network adapters. Less common are x4 and x8 slots. You can 'up-plug' PCI-Express cards. That means that you can plug a PCI-Express x1 expansion card into a PCI-Express x1, x4, x8, or x16 expansion slot and it will work (as long as the motherboard BIOS doesn't have bugs). The x1 expansion card can only run at x1 speed in any of those slots but it will work. Likewise, you can plug x4 expansion cards into x4, x8, and x16 slots and you can plug x8 expansion cards (if you can find one) into x8 and x16 slots. But you can't 'down-plug' PCI-Express cards because an expansion card with a higher number of lanes (the 'x' value) physically won't fit into an expansion slot with a lower number of lanes. For example, a x16 expansion card won't fit into a x8, x4, or x1 slot.

When it comes to video cards, some motherboards can be extremely picky about up-plugging. You should always be able to plug a x1, x4, or x8 video card into a x16 PCI-Express slot and have it work. It may only run at x1 speeds but it should work nonetheless. Unfortunately, many motherboards have problems with video card up-plugging. As time passes, the motherboard BIOSes should have better support for up-plugging video cards but for now it may not work. Plugging a x16 video card into a x16 slot always works and plugging a x1 video card into a x1 slot almost always works but the other combinations may not work properly. If you have problems up-plugging a video card then you should go to the motherboard manufacturer's website and update the motherboard BIOS. That's where they will fix problems with expansion card up-plugging.

Some motherboards come with two PCI-Express x16 slots so you can run two full speed video cards at once. This is normally used only by serious gamers who want the highest possible performance in 3D games. NVIDIA has a dual-card implementation called SLI and ATI has a version called CrossFire. In these modes, both video cards work together on the same game to increase performance. Many motherboards with two PCI-Express x16 slots have special rules about using the second x16 slot. With some motherboards you have to plug a small circuit board into the motherboard to enable the second x16 slot. Even when enabled, the second x16 slot may have special restrictions. In some cases that slot may not work with anything but video cards. The manual of a dual x16 slot motherboard will tell you if there are any restrictions related to its x16 slots. Don't assume that you can treat them like 'normal' PCI-Express slots unless the motherboard manual says so.

AGP

The AGP slot was the standard slot used by video cards before it was replaced by PCI-Express x16 slots. They are four different AGP speeds. AGP 8X is pronounced 'AGP eight times'. The eight refers to the speed. There are also slower speeds of 4, 2, and 1 times. When it comes to games, as of late 2006, there is very little speed benefit in going faster than AGP 4X (about 1 GB/s). You gain at most a few percent by going from AGP 4X to a faster slot. As time passes it will make more of a difference. As of late 2006, AGP has a much more limited selection of video cards than PCI-Express x16. AGP cards are usually more expensive than PCI-Express x16 cards in the same speed range. On top of that, the fastest video cards are not available for AGP at all. Basically, AGP is in the process of being orphaned. If you're getting a new computer then make sure that it uses PCI-Express x16 rather than AGP.

You do have to be a little careful when getting AGP cards because not all AGP cards are compatible with all AGP motherboards. If you go shopping for AGP cards right now then all you're likely to find are 'AGP 8X, 4X' cards. Those are compatible with any motherboard which supports AGP 4X or AGP 8X. But there are some old AGP 2X or AGP 1X video cards and there are also old AGP 2X or 1X motherboards. New video cards may not be compatible with old motherboards and old video cards may not be compatible with new motherboards. It's hard to buy the old AGP 2X 1X video cards or motherboards these days but you may run into them. That's why it pays to be careful. That's especially true if you're buying used hardware.

Each AGP card has one or two slots in its card edge. If a video card has the 3.3 volt slot, then it can use 3.3 volt signaling. If it has the 1.5 volt slot then it can use 1.5 volt signaling. If the card has both slots then it can use both signaling voltages. The newest version of AGP added support for 0.8 volt signaling but it did not add a new kind of slot. If a video card supports either 1.5 volt or 0.8 volt signaling then it has the 1.5 volt slot.

The AGP connectors on the motherboard are keyed to prevent insertion of AGP cards which would be damaged if plugged in. An AGP 3.3V motherboard connector can only accept AGP cards which have the 3.3V slot. If you try to insert a card without a 3.3V slot into an AGP 3.3V motherboard connector, the card will bump into the connector key and cannot be inserted. Likewise an AGP 1.5V motherboard connector can only accept AGP cards with the 1.5V slot. An AGP universal motherboard connector has no keys and therefore can accept any kind of AGP card. An AGP card with both voltage slots can be plugged into any kind of AGP motherboard connector. If you can plug an AGP card into an AGP motherboard connector, then they are compatible. So you need to check to see that the video card can fit into the motherboard connector to know if they are compatible. This page gives you a more detailed explanation of the rules AGP compatibility.

PCI

You can still get video cards for PCI slots but they tend to be obsolete and overpriced. The selection is very limited. Many low-end computers come with integrated graphics rather than a separate video card. This is done to cut costs. Unfortunately, integrated graphics are very poor performers at 3D graphics. If you don't play games, then integrated graphics may be just fine. But if you'd like to increase the graphics performance then you need to add a 'real' video card. Unfortunately, some computer manufacturers make some low-end models with integrated graphics which do not have either AGP or PCI-Express x16 slots. You should never buy such a computer. Integrated graphics are okay as long as you have the option to upgrade if you need to. But if you buy one of those bad low-end machines then your only graphics upgrade option is to use a PCI slot. PCI will be a serious performance bottleneck. And you'll get stuck buying an expensive, obsolete, PCI video card. The best way to avoid this miserable fate is to avoid buying these crippled computers in the first place. Make sure that your new computer has an AGP slot or (preferably) a PCI-Express x16 slot. It will save you lots of grief (and money) if you decide to upgrade your graphics system.

When purchasing PCI video cards you need to be careful about compatibility with the PCI expansion slots on the motherboard. There are two things which vary in PCI expansion slots: the voltage, and the number of bits. PCI Slots can support either 3.3 volts or 5 volts. PCI has a system of keys which only allows expansion cards to fit into the motherboard connector if it provides the correct voltage. As shown in the picture above, a 5 volt PCI motherboard connector has a key near the right end. A 5 volt PCI expansion card has a slot which lines up with the key. That allows you to plug a 5 volt PCI card into a 5 volt PCI connector. You can see a 'real' PCI connector in the motherboard picture above. 3.3 volts is similar but its key is near the left end. This system allows you to plug 5 volt cards into 5 volt PCI connectors but not into 3.3 volt PCI connectors. Likewise, you can only plug 3.3 volt cards into 3.3 volt PCI connectors and not into 5 volt connectors. If the expansion card can run on both 3.3 and 5 volts then it has both slots and fits into both 3.3 and 5 volt PCI motherboard connectors. PCI expansion slots also support two different widths: 32 bits, and 64 bits. The 64 bit motherboard connector is longer than a 32 bit connector. Most PC motherboards come with 32 bit slots but some come with 64 bit slots. A 32 bit PCI expansion card will work fine in a 64 bit slot. PCI video cards are 32 bit cards.

Most PCI slots on PC motherboards are 32 bit, 5 volt slots. Most PCI video cards are also 32 bits and 5 volts. Many of the PCI video cards also support 3.3 volts. As a result, most PCI video cards work fine in most PCs. However, there are some motherboards out there with other kinds of PCI slots. 64 bit, 3.3 volt slots are common in workstation-oriented motherboards. If you want to use one of those then you'll need a PCI video card which supports 3.3 volts. So, before purchasing a PCI video card it's a good idea to make sure that the PCI video card and motherboard are compatible. If the PCI video card fits into the motherboard expansion connector then they're compatible.
